● True double-conversation online technology
● DSP technology for all-digital control, high reliability
● Input power factor correction >0.98
● Wide input voltage (115VAC-300VAC)
● Output power factor 0.8/0.8(optional @ environment temperature below 30 degree)
● Output voltage: 200/208/220/230/240VAC
● 50HZ/60HZ frequency converter mode
● LCD and LED user interface
● Short circuit, Overload and Over temperature protection
● Automatically restarts when utility power restores after UPS shutdowns due to battery low
● Auto-restart
● EMI/RFI noise filter
● Generator compatible
● Optional SNMP card slot
● Smart RS232communication

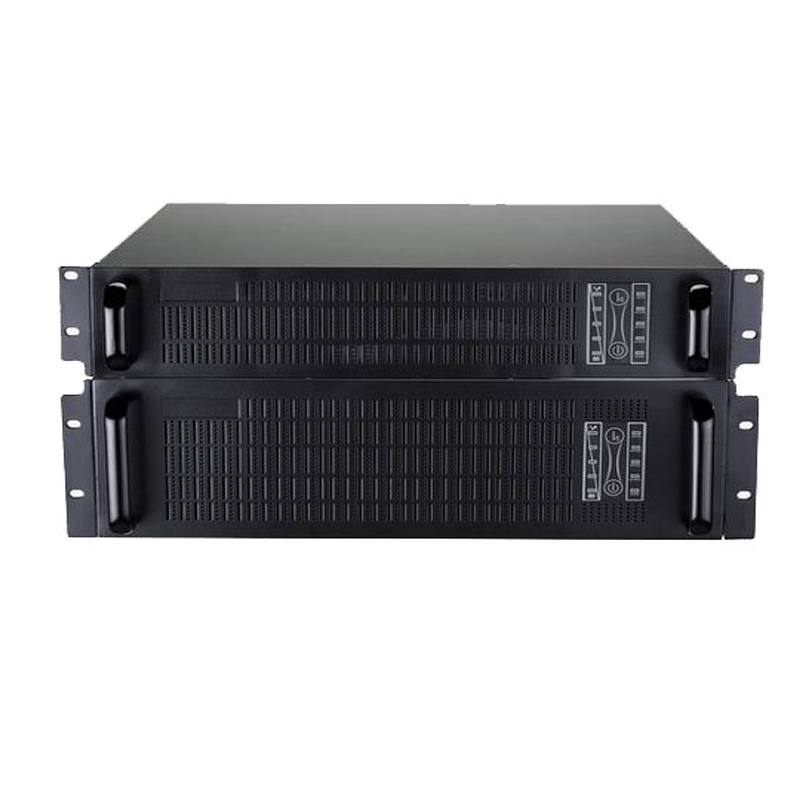

Model | HR1KS/L | HR2KL | HR3KL | HR6KL | ||||
Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW | 6KVA/4.2KW | ||||
Input | ||||||||
Phase | 1/1 Phase, 1 wire+N+G | |||||||
Nominal Voltage | 220VAC | |||||||
Voltage Range | 115 ~ 300VAC | 176~276VAC | ||||||
Frequency Range | 46~54Hz(default), user adjustable within 40~60Hz | 46~54Hz | ||||||
Power Efficiency | 0.97 | 0.98 | ||||||
Connection | IEC320-10A inlet | IEC320-16A inlet | Terminal block | |||||
Output | ||||||||
Output Voltage | 220/230/240VAC ± 2% | |||||||
Power Factor | 0.7 | |||||||
Frequency Range | Synchronized 46-54Hz (Line mode), 50/60HZ±0.2HZ(battery mode) | |||||||
Voltage Regulation | ±2% | |||||||
Overload Capacity | 108%-150% for 30 seconds | 105%-130% for 10 min | ||||||
> 150% for 300 ms | > 130% for 1 min | |||||||
Crest Power | 3:1 (max) | |||||||
Waveform | Pure sine wave | |||||||
Voltage Distortion | ≤ 2% for linear load, ≤ 4% for non-linear load | |||||||
Transfer Time | 0ms (line to battery mode) | |||||||
Protections | overload, short circuit, over temperature, surge, line abnormal | |||||||
Efficiency | ≥ 90% | |||||||
Bypass | ||||||||
Automatic Transfer | On overload and UPS failure | |||||||
Before UPS Power-on | Default “NO”, user adjustable to “YES” | Yes | ||||||
Voltage Range | 80~264VAC(default), user adjustable within 80~286VAC | 176~261VAC | ||||||
Indications and alarm | ||||||||
LED | Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators | |||||||
Audible Alarm | Battery mode, Bypass mode, Low battery/Charger fault, Overload, Fault. | |||||||
Communication/Management | ||||||||
Interface Port | RS-232 | |||||||
Intelligent Slot | WebPower SNMP/Web card, AS400 card, WinPower CMC Optional | |||||||
Environment | ||||||||
Operation Temperature | 0-40℃ | |||||||
Relative Hummidity | 20-90%RH(non-condensing) | |||||||
Noise Level | <55dB | |||||||
Battery Pack | ||||||||
Type | Internal | External | ||||||
DC Voltage | 36V (12V*3PCS) | 72V (12V*6PCS) | 96V (12V*8PCS) | 240V (12V*20PCS) | ||||
Gross Weight (KG) | 16 | 25.6 | 58.2 | |||||
Dimension(D*W*H)(mm) | 482.6x450x88(2U) | 482.6x600x130(3U) | ||||||
Physical | ||||||||
Dimension(D*W*H)(mm) | 482.6x450x88(2U) | 482.6x600x130(3U) | ||||||
Net Weight (KG) | 15.3 | 10.3 | 11.2 | 18.3 |
