Solar Panel
Key Features
Parameter

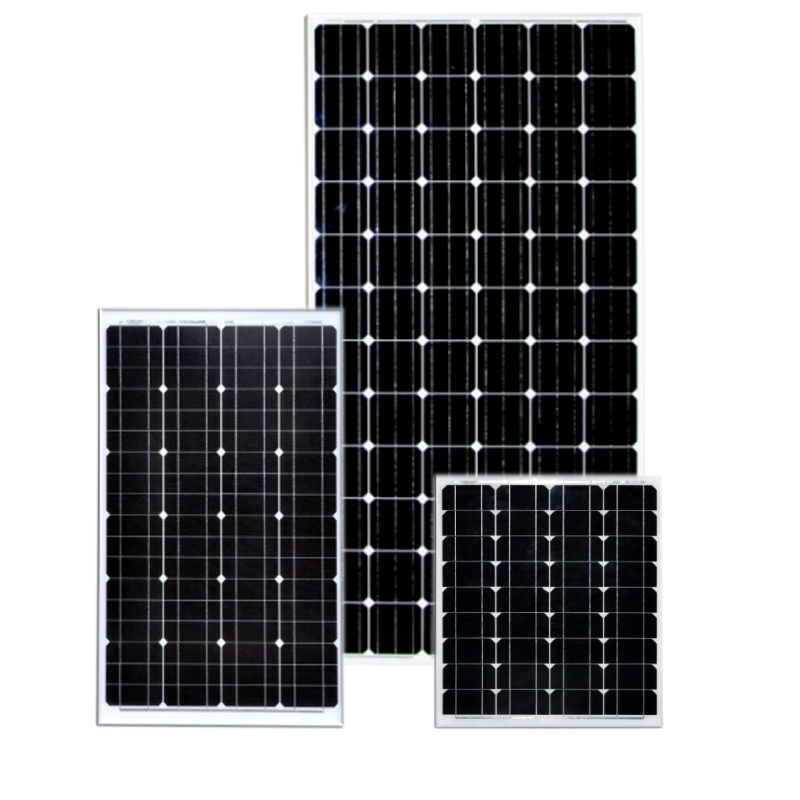

125mm Monocrystalline Cells Selection Guide



ModelPmax(W)Vmp(V)Imp(A)Voc(V)Isc(A)Cells SizeCell ArrayDimension (mm)N.W(KG)
M5-36P-6W617.90 0.3421.80 0.38 1/16*1254x9285*185*18*180.8
M5-36P-10W1017.48 0.5821.24 0.66 1/8*125350*290*23*171.4
M5-36P-15W1517.28 0.8721.24 0.98 1/8*125443*290*23*171.8
M5-36P-20W2017.28 1.1621.24 1.31 1/4*125630*290*25*252.4
M5-36P-30W3017.80 1.6921.60 1.93 125*1/3545*450*25*252.8
M5-36P-40W4017.64 2.2721.60 2.57 1/2*125634*544*30*254.4
M5-36P-50W5018.00 2.7822.70 3.00 1/2*125634*544*25*254.4
M5-36P-60W6018.00 3.3421.24 3.66 3/5*125820*544*30*255.2
M3X-85W8517.90 4.7522.35 5.25 1254x9

1200*553*35*35

1200*553*30*35

7.5
M3X-90W9018.10 4.9922.45 5.35
M3X-100W10018.55 5.3622.65 5.65
M3X-105W10518.78 5.5922.75 5.85
M7X-180W18036.10 4.9944.90 5.36 1256x12

1580*808*35*35

1580*808*30*25

15.5
M7X-185W18536.40 5.0945.00 5.48
M7X-190W19036.70 5.1845.20 5.56
M7X-195W19536.90 5.2945.30 5.65
M7X-200W20037.10 5.445.40 5.71
M7X-205W20537.30 5.5145.60 5.79
M7X-210W21037.50 5.645.90 5.86







156mm Monocrystalline Cells Selection Guide


ModelPmax(W)Vmp(V)Imp(A)Voc(V)Isc(A)Cells SizeCell ArrayDimension (mm)N.W(KG)
M3Y-125W1518.30 6.8322.30 7.39 1564x9992*992*35*3512
M3Y-150W15018.00 8.3321.24 8.99 1564x91480*670*35*3512
M5Y-215W21526.90 8.0133.40 8.56 1566x9

482*992*45*35

1482*992*40*35

18
M5Y-220W22027.10 8.1333.60 8.68
M5Y-225W22527.30 8.2633.80 8.75
M5Y-230W23027.50 8.3734.00 8.80
M5Y-235W23527.80 8.4534.20 8.82
M5Y-240W24028.10 8.5434.50 8.86
M6Y-250W25030.60 8.1937.40 8.71 1566x10

1640*992*45*35

1640*992*40*35

19
M6Y-255W25530.70 8.3137.70 8.75
M6Y-260W26030.90 8.4237.90 8.80
M6Y-265W26531.10 8.5338.10 8.90
M6Y-270W27031.30 8.6338.30 9.08
M7Y-285W28536.10 7.9144.20 8.60 1566x121956*992*50*35 1956*992*45*3522.5
M7Y-290W29036.20 8.0244.40 8.65
M7Y-295W29536.40 8.1244.60 8.68
M7Y-300W30036.70 8.1944.90 8.73
M7Y-305W30536.90 8.2845.20 8.76
M7Y-310W31037.10 8.3845.50 8.78
M7Y-315W31537.20 8.4745.60 8.82
M7Y-320W32037.40 8.5645.80 8.85


STC: Irradiance of 1000W/m2, Air Mass of 1.5, Cell Temperature of 25℃.

Power Tolerance: ±3%.

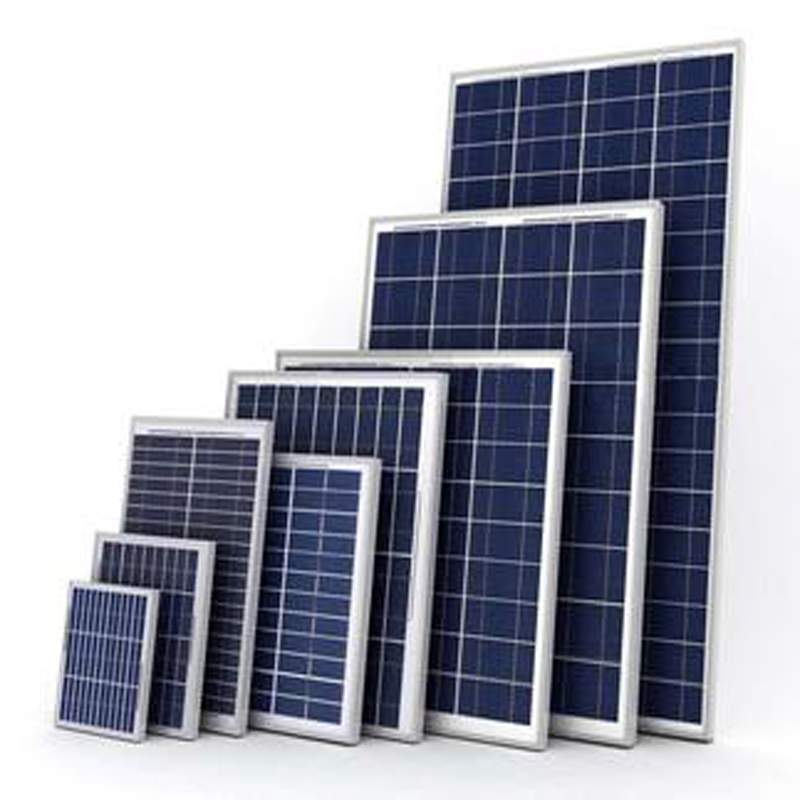

156mm Polycrystalline Cells Selection Guide



ModelPmax(W)Vmp(V)Imp(A)Voc(V)Isc(A)Cells SizeCell ArrayDimension (mm)N.W(KG)
P6-36P-10W1018.00 0.60 21.60 0.70 1/8*1564x9350*290*18*131.2
P6-36P-15W1517.80 0.84 21.24 0.91 1/8*1564x9416*356*23*171.7
P6-36P-20W2017.20 1.16 21.24 1.31 1/6*1564x9556*350*25*252.3
P6-36P-30W3017.20 1.74 21.60 1.93 1/4*1564x9660*420*25*253.2
P6-36P-40W4017.64 2.27 21.60 2.57 1/3*1564x9660*540*25*254.0
P6-36P-50W5018.00 2.78 21.24 3.06 1/3*1564x9660*540*25*255.3
P6-36P-60W6017.40 3.46 21.70 3.72 1/2*1564x9766*680*30*256.5
P6-36P-80W8017.50 4.58 21.70 4.78 3/5*1564x9920*680*35*357.5
P6-36P-100W10017.60 5.72 22.20 6.26 3/4*1564x91130*670*35*3511.8
P3Y-110W11017.30 6.36 21.60 7.01 1564x91480*670*35*3511.5
P3Y-130W13018.10 7.20 22.20 8.00
P3Y-135W13517.50 7.72 21.90 8.25
P5Y-190W19025.90 7.34 32.50 8.26 1566x9

1482*992*45*35

1482*992*40*35

18
P5Y-195W19526.10 7.49 32.70 8.31
P5Y-200W20026.20 7.65 32.90 8.35
P5Y-205W20526.30 7.80 33.00 8.41
P5Y-210W21026.40 7.96 33.20 8.53
P5Y-215W21526.60 8.09 33.50 8.61
P5Y-220W22026.80 8.21 33.60 8.67
P5Y-225W22527.10 8.31 33.80 8.73
P5Y-230W23027.40 8.41 34.00 8.79
P6Y-235W23529.50 7.97 36.90 8.59 1566x10

1640*992*45*35

1640*992*40-35

19.5

19

P6Y-240W24029.80 8.06 37.00 8.62
P6Y-245W24530.00 8.17 37.20 8.69
P6Y-250W25030.10 8.31 37.30 8.73
P6Y-255W25530.30 8.42 37.50 8.77
P6Y-260W26030.50 8.53 37.70 8.81
P7Y-265W26534.90 7.60 43.80 8.35 1566x12

1956*992*50*35

1956*992*45*35

22.5
P7Y-270W27035.00 7.72 43.90 8.39
P7Y-275W27535.20 7.82 44.10 8.46
P7Y-280W28035.30 7.94 44.20 8.53
P7Y-285W28535.70 7.99 44.40 8.59
P7Y-290W29035.80 8.11 44.50 8.65
P7Y-295W29535.90 8.23 44.60 8.68
P7Y-300W30036.10 8.32 44.80 8.73
P7Y-305W30536.30 8.41 45.00 8.78
P7Y-310W31036.50 8.50 45.20 8.83


STC: Irradiance of 1000W/m2, Air Mass of 1.5, Cell Temperature of 25℃.

Power Tolerance: ±3%.
